CNC-High speed Milling Machine

DESCRIPTION:

• Brand-Mikron
• Model-HSM 700
• Condition: Used

OTHER DETAILS:

• Automation max. load 800 kg
• Automation pallet size 800 x 600/4x mm
• Axes 3

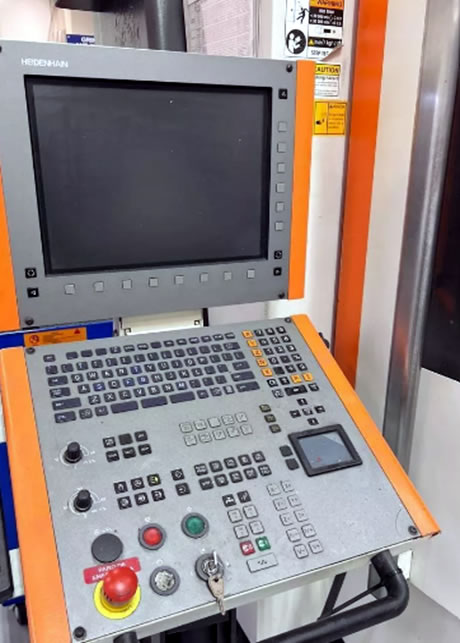

• Control HEIDENHAIN iTNC 530
• Dimensions (long x wide x high) 4.9700 x 3.660 x 3.281 mm
• Max. spindle speed 36.000 - 42.000 rpm
• Max. workpiece weight 1.000 kg
• Number of tool stations HSK-E40 / HSK-E50 / HSK-A63
• Rapid Traverse (X x Y x Z) 20 / 42 mm/min
• Spindle type vertical
• Weight 9.900 + 1.800
• Working area (X x Y x Z) 700 x 600 x 500 mm
