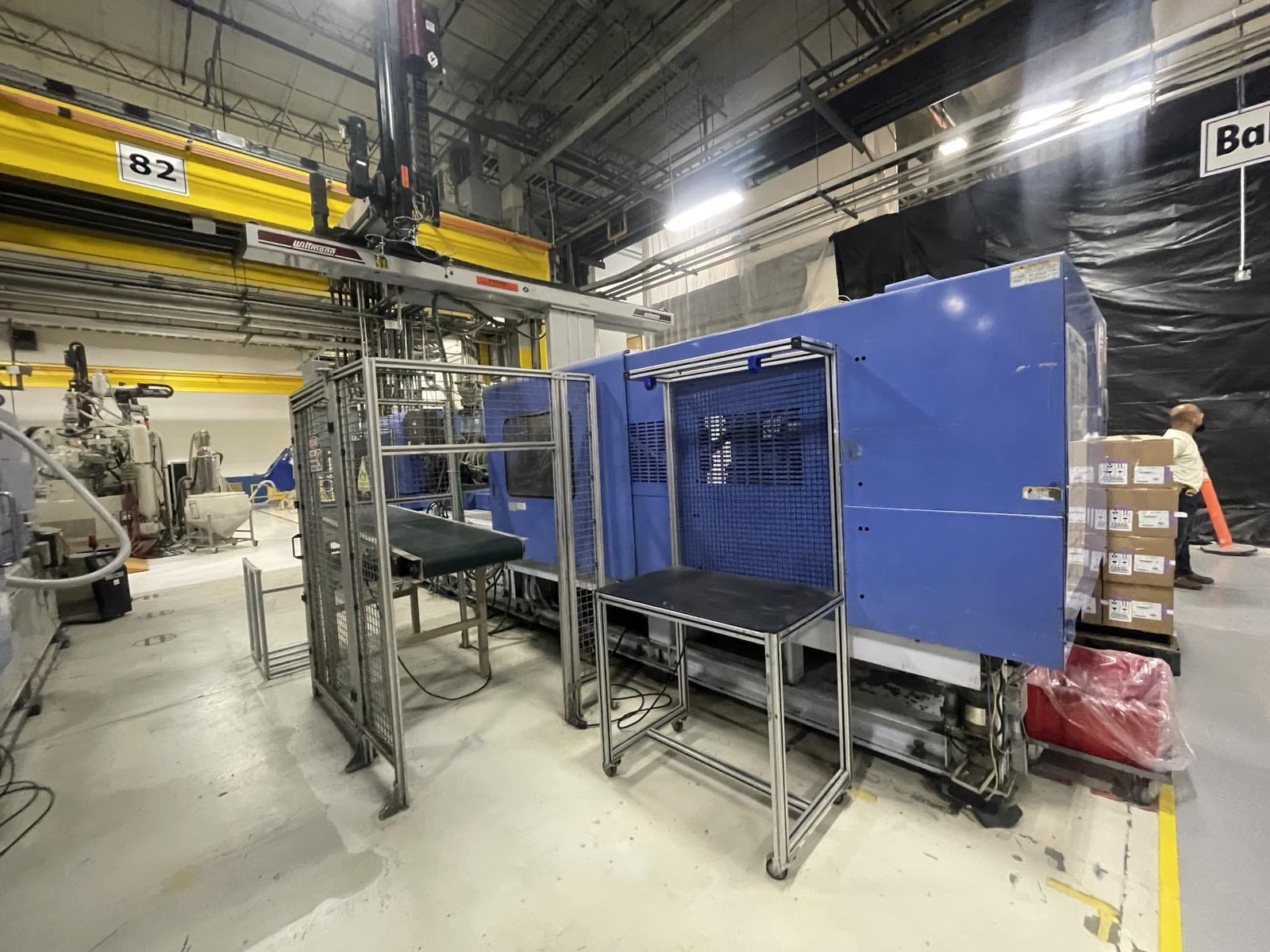

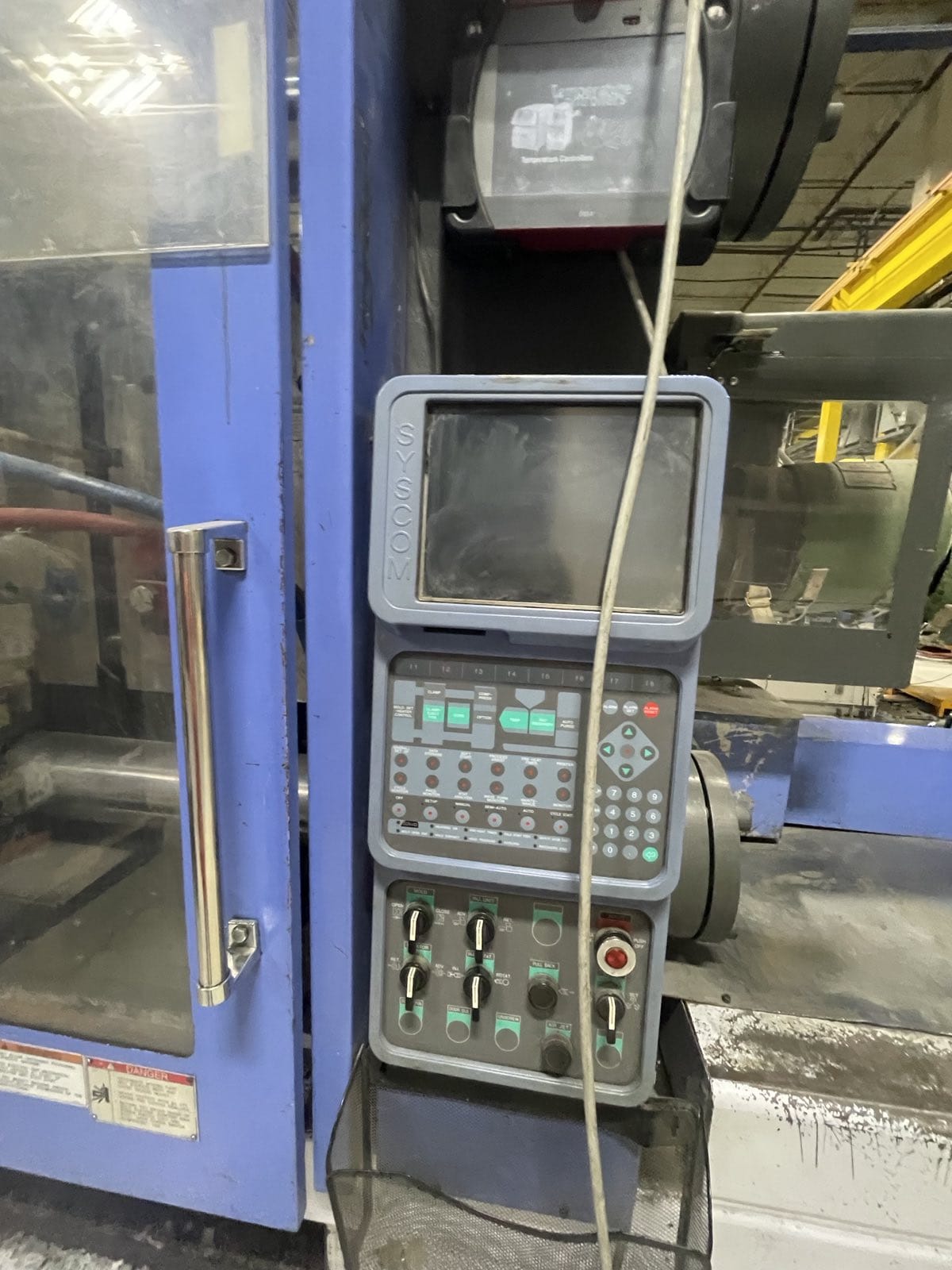

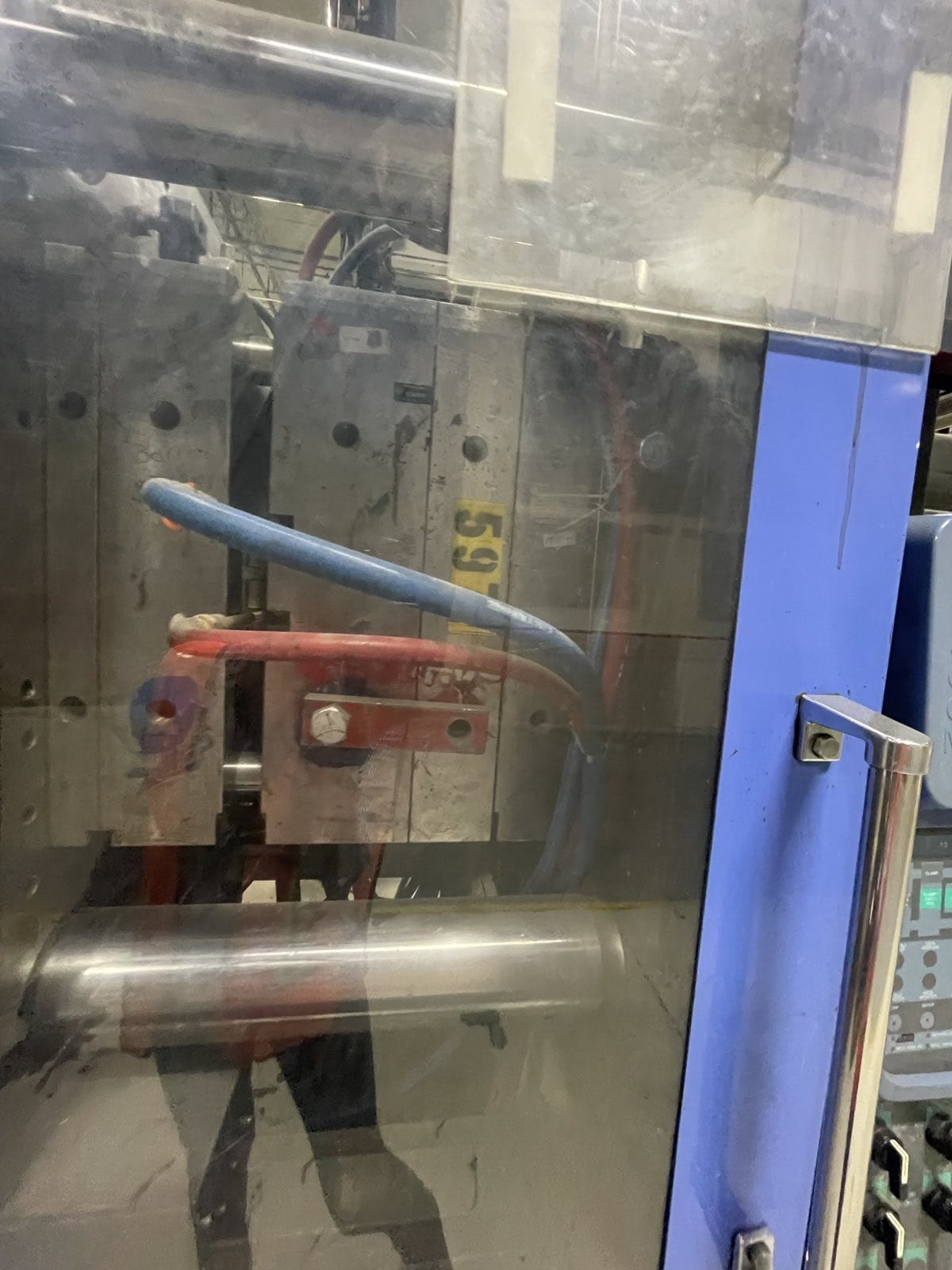

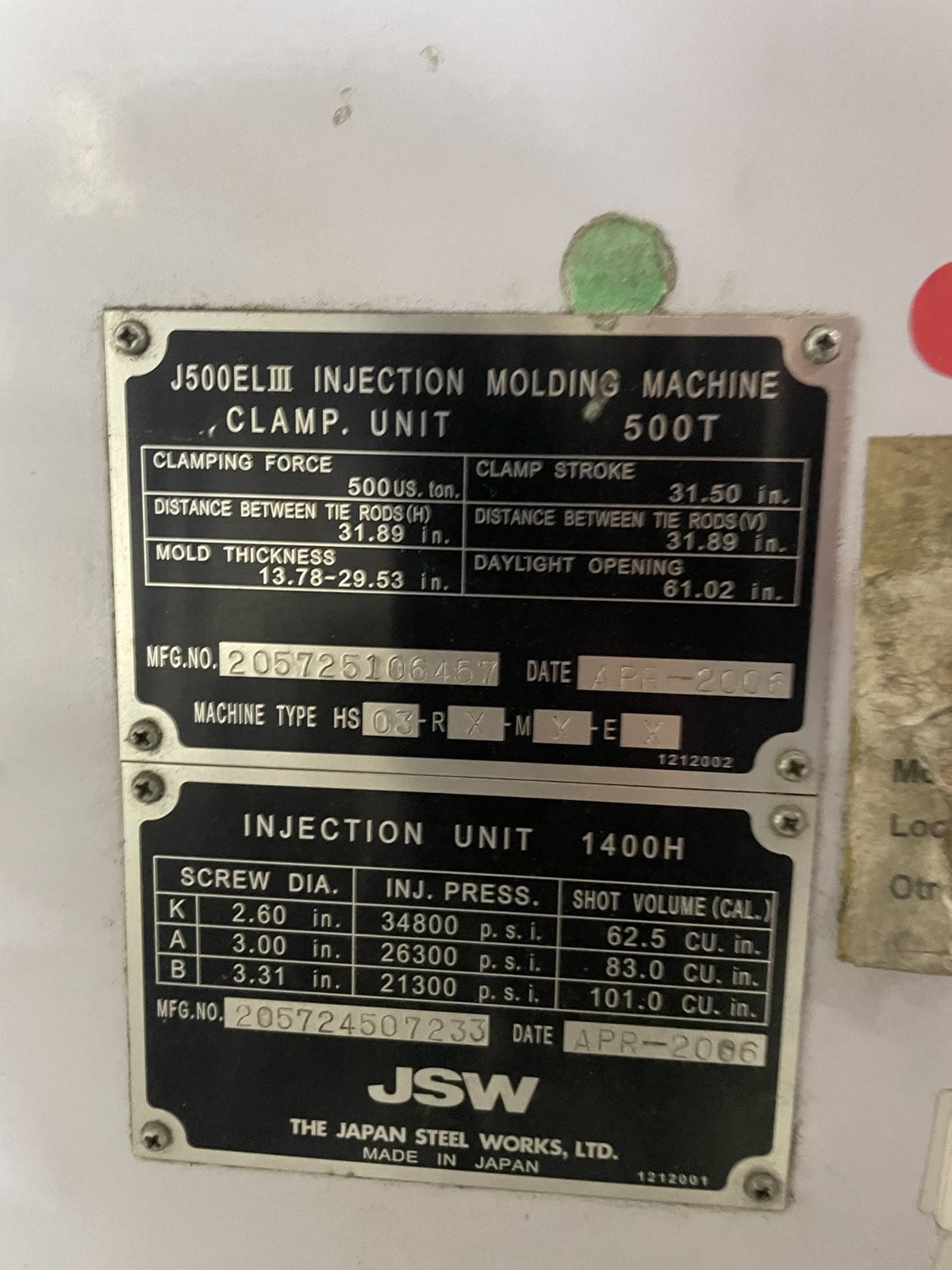

500 TON INJECTION MOLDING MACHINE ALL ELECTRIC JSW MODEL J500EL III1400H, YEAR 2006
SKU:
500 TON INJECTION MOLDING MACHINE
This equipment is in excellent operating conditions, it is located in Ciudad Juárez, Chihuahua, Mexico.
| Tonage | 500 |
| Machine Brand | JSW |
| Type | ELECTRIC |
| Machine Model | J500EL III1400H |
| Year of Manufacture | 2006 |
| Shot Size OZ | 45.99 |
| Barrel size | 76.2MM |
| Screw size (on press) | GP |
| Max Barrel Temp. (F) | 210 |
| Max Screw RPM | 6.3 |
| Core Pull Air B-side | Electric |
| Hydraulic (Bar) PSI max | 26400 |
| Hydraulic (Melt) PSI max | Electric |
| I/R | NO |
| Valve Gate Hydraulic | YES |
| Valve Gate Air | 31.89X31.89 |
| Tie bar Clearance | 13.78 |
| Min. Mold height | 29.53 |
| Max daylight | 47 X 47 |
| Platen Dimensions | 7.165 |
| Machine Hours | 88551 |
We advise you on shipping and import to your workshop or business.
For more information, contact us:
USA +1 (619) 810 7497 | This email address is being protected from spambots. You need JavaScript enabled to view it.
3130 Bonita Road, STE 203, Chula Vista CA, 91910
| Dimension (L x W x H) | 0 x 0 x 0 |
| Weight | 0 |
